TRRare Earth Alloy Series-Magnesium Scandium/Lanthanum/Cerium/Samarium/Erbium/Ytterbium(Mg-Sc/La/Ce/Sm/Er/Yb)
Specification: 300×100×65(mm)，and customization
Shape: waffle ingots, also available for customization
Packaging Method: inner lined with plastic bags, protected by argon gas, packed in iron drums, 50kg per drum
Specification:
|
Product Name |
Grade |
RE/% |
Impurity content, not exceeding (mass fraction /%) |
Standard |
Main Effects |
|||||
|
Si |
Fe |
Al |
Ca |
Cu |
Ni |
|||||
|

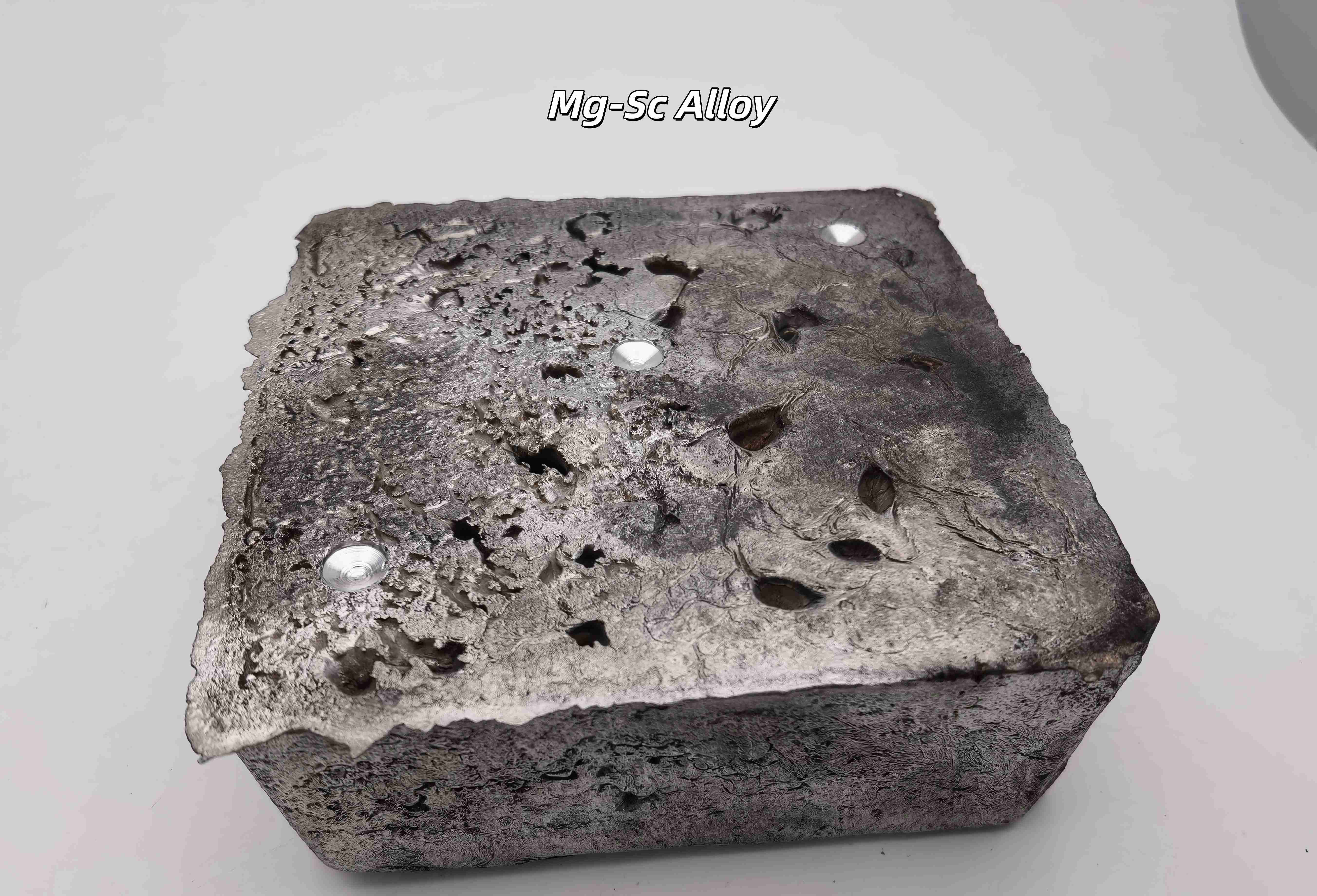

Mg-Sc Alloy |
Mg-Sc30 |
30±2 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
Hunan Rare Earth Standard |
Refine the grain structure to enhance the room-temperature and high-temperature mechanical properties of magnesium alloys, resist high-temperature creep, and possess shape memory functionality. |
|
Mg-Sc25 |
25±2 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sc20 |
20±2 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sc15 |
15±2 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sc10 |
10±1 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sc5 |
5±0.5 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sc2 |
2±0.2 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|

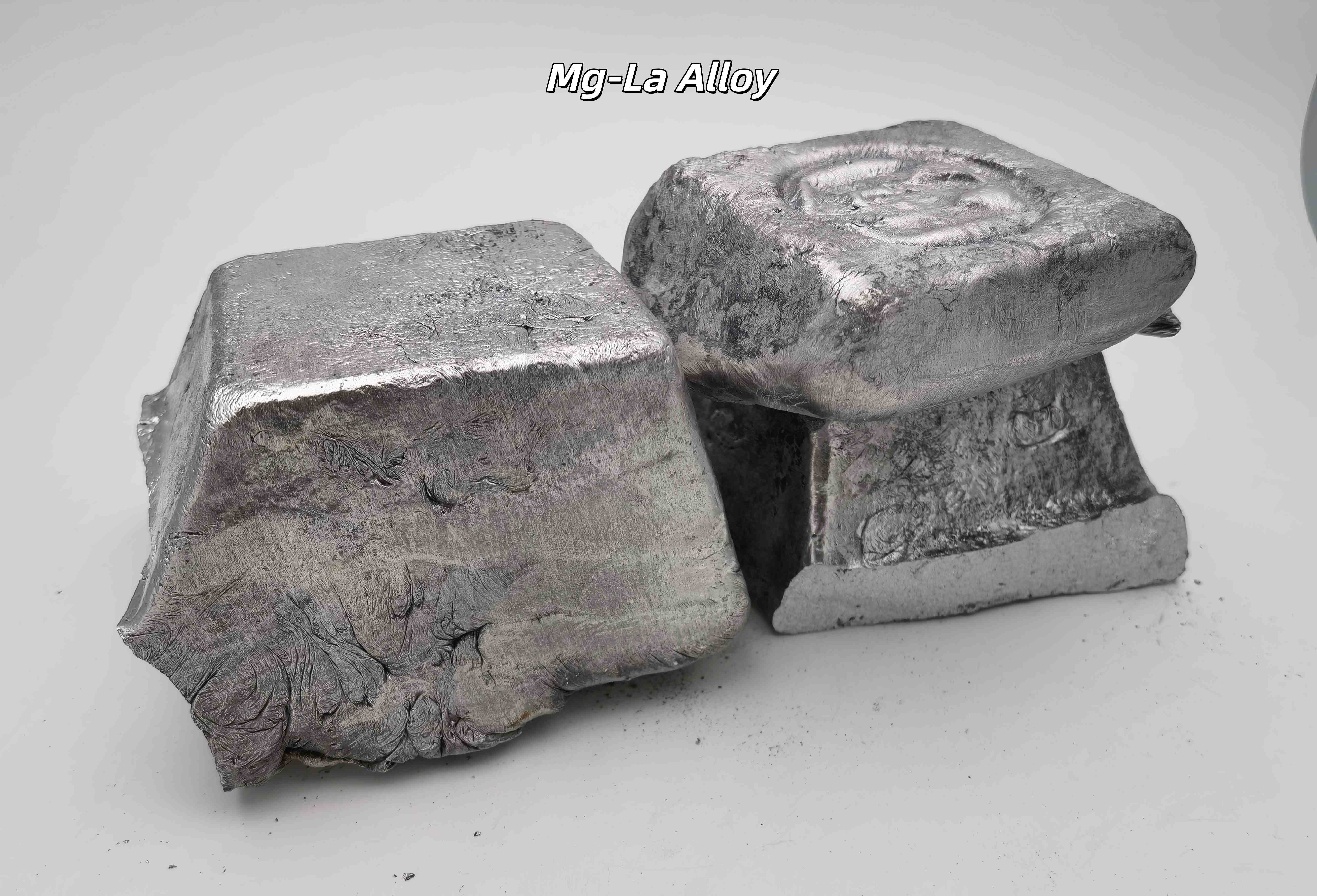

Mg-La Alloy |
Mg-La30 |
30±1 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
GB/T 29915-2013 |
Refine the crystal grains, increase the recrystallization temperature and enhance the creep resistance |
|
Mg-La25 |
25±1 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-La20 |
20±1 |
0.03 |
0.10 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Ce Alloy |
Mg-Ce30 |
30±1 |
0.03 |
0.05 |
0.02 |
0.03 |
0.005 |
0.005 |
GB/T 39125-2020 |
Improve the plasticity and hardness of the alloy, and enhance its corrosion resistance |
|
Mg-Ce25 |
25±1 |
0.03 |
0.05 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Ce20 |
20±1 |
0.03 |
0.05 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|

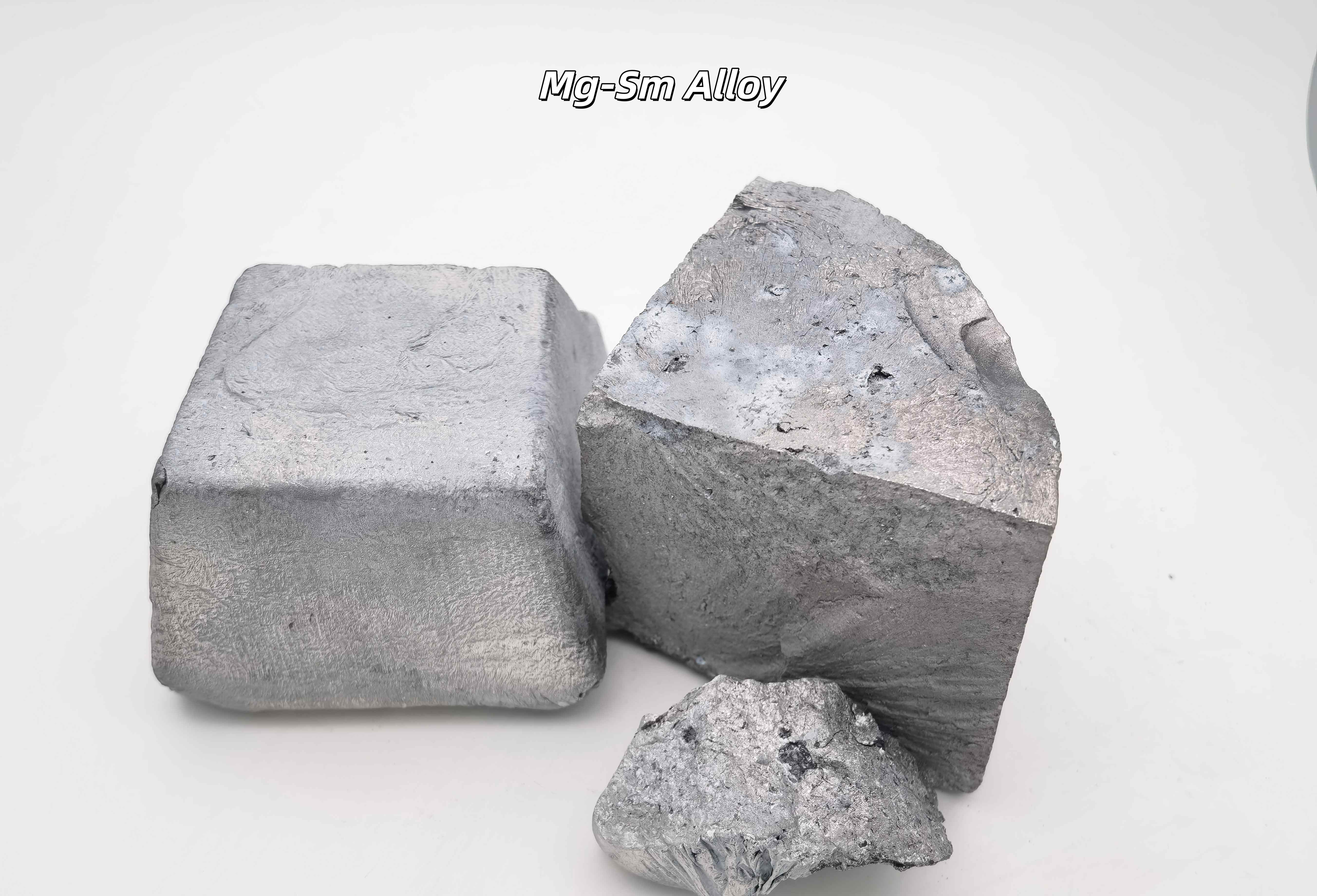

Mg-Sm Alloy |
Mg-Sm30 |
30±2 |
0.03 |
0.03 |
0.02 |
0.03 |
0.005 |
0.005 |
TCSRE 12002-2017 |
Improve mechanical properties, alleviate rolling edge cracks, and optimize casting performance |
|
Mg-Sm25 |
25±2 |
0.03 |
0.03 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|
Mg-Sm20 |
20±2 |
0.03 |
0.03 |
0.02 |
0.03 |
0.005 |
0.005 |
|||
|

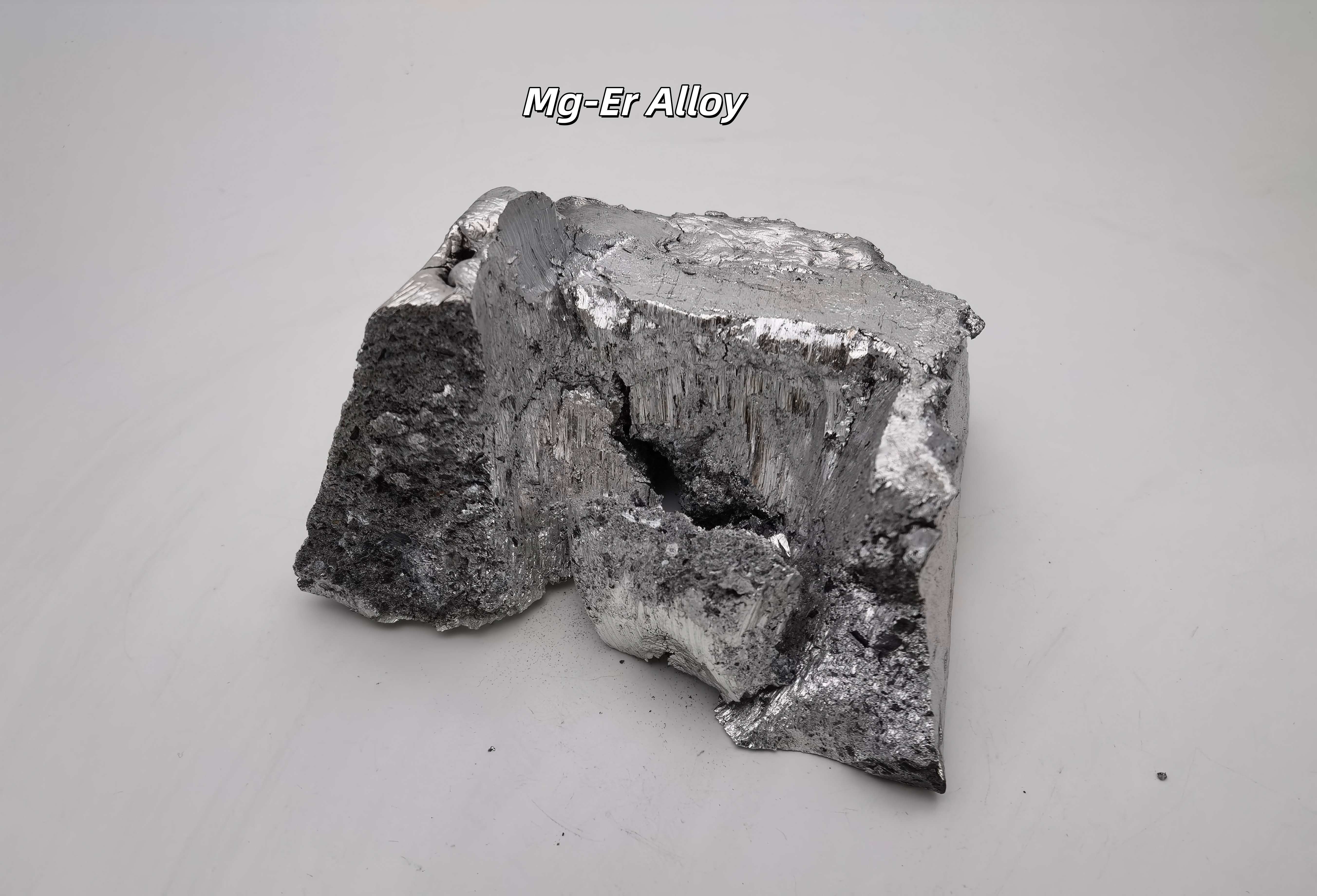

Mg-Er Alloy |
Mg-Er30 |
30±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
Hunan Rare Earth Standard |
Refine the crystal grains, enhance the high-temperature performance, and achieve flame retardancy. |
|
Mg-Er25 |
25±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
|||
|
Mg-Er20 |
20±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
|||
|

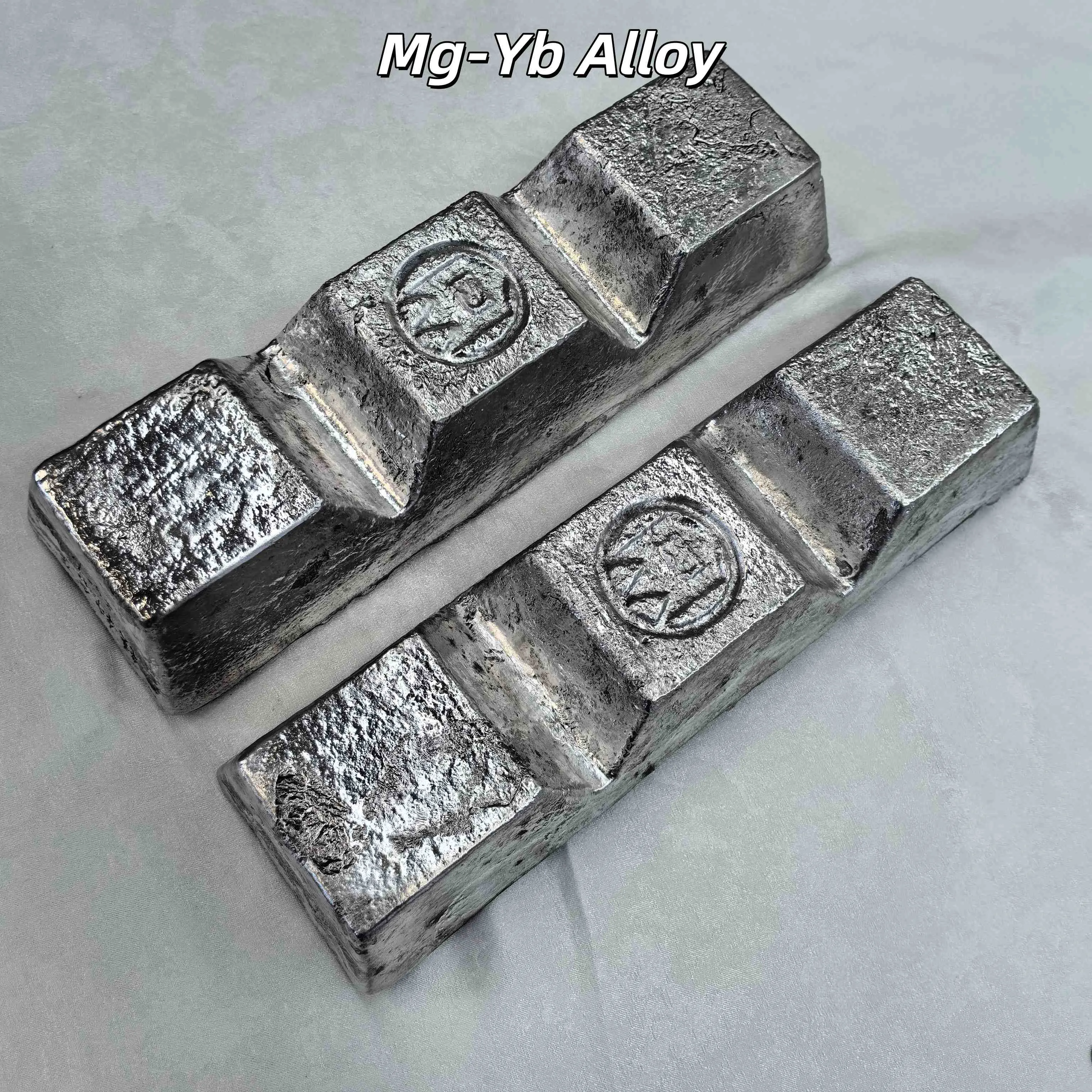

Mg-Yb Alloy |
Mg-Yb30 |
30±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
Hunan Rare Earth Standard |
Refine the grains, improve the microstructure, and enhance corrosion resistance. |
|
Mg-Yb25 |
25±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
|||
|
Mg-Yb20 |
20±2 |
0.02 |
0.10 |
0.02 |
0.03 |
0.003 |
0.01 |
|||
