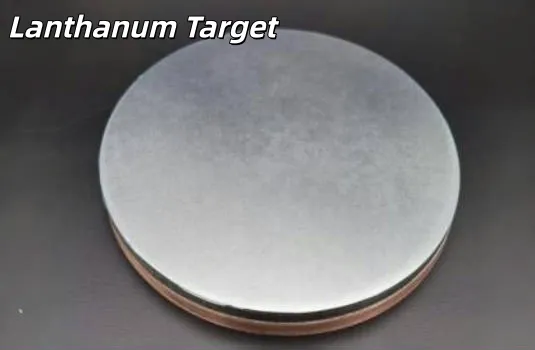

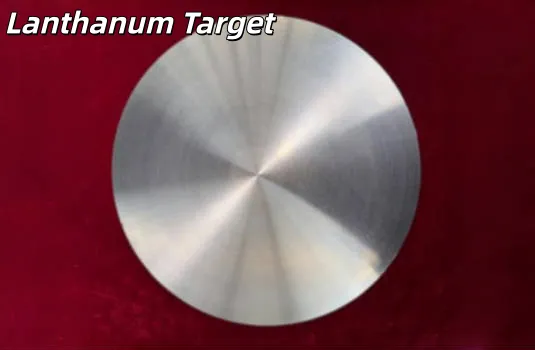

High-purity Rare Earth Metal and Alloy Targets Series——Lanthanum Target（La）

Purity: 2N~4N(absolute purity)

Product Specification: double-layer vacuum packaging or oil-soaked packaging



Standard Model:

Standard		Hunan Rare Earth Standard
Grade		La-4Na-T	La-3Na5-T	La-2Na-T
La, no less than(%)		99.99	99.95	99
La/RE, no less than(%)		99.999	99.995	99.5
The impurity content shall not exceed (ppm)	Al	15	25	100
	Si	5	10	300
	Fe	20	100	2000
	Ca	10	25	200
	Cu	20	100	500
	Cr	1	10	200
	Ni	5	10	200
	Mn	1	10	100
	Li	1	5	—
	Na	1	10	—
	K	5	5	—
	C	100	400	—
	O	2000	4000	—
Typical Specifications	Round Target	φ164*6mm，φ180*12mm，φ203.2*6mm，φ469.9*3mm

Product Applications:

Lanthanum metal targets possess excellent dielectric constants, making them ideal high-K gate dielectric materials. These targets are used to increase the gate dielectric constant of transistors in processes below 5nm and reduce gate leakage current.



Technical Advantages:

1. Using high-purity lanthanum metal as the raw material, the absolute purity of the product can reach up to 4N. The control of key impurities is strict, with O ≤ 2000 ppm and C ≤ 100 ppm.

2. The average grain size is less than 100 μm.

3. Customized production of non-standard sizes is supported.
