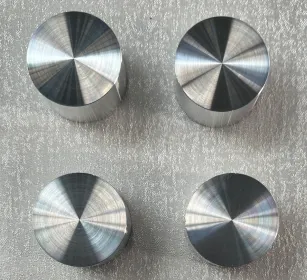

High-purity Rare Earth Metal and Alloy Targets Series——Ytterbium Target(Yb)

Purity: 3N~4N(absolute purity)

Product Specification:vacuum packaging. Customization is also available upon request



Standard Model:

Standard		Hunan Rare Earth Standard
Grade		Yb-4Na-T	Yb-3Na5-T	Yb-3Na-T
Yb, no less than(%)		99.99	99.95	99.9
Yb/RE, no less than(%)		99.999	99.99	99.99
The impurity content shall not exceed (ppm)	Al	5	100	150
	Si	5	100	200
	Fe	10	100	150
	Ca	10	150	100
	Cu	1	5	50
	Cr	1	5	20
	Ni	1	10	50
	Mn	1	10	50
	W	5	50	100
	Mg	10	50	100
	Cl	80	100	200
	C	100	300	500
	O	1000	2000	4000
Typical Specifications	Round Target	φ6*6mm，φ6*10mm，φ10*10mm，φ53*65.5mm，φ60*26.5mm



Product Applications:

Primarily used as a metal cathode coating material for OLED displays, it can replace traditional metal cathodes made of magnesium and silver. It reduces screen power consumption and extends the battery life of electronic products. It also significantly enhances the color saturation and resolution of the display, making the screen colors more vivid and the display effect clearer, particularly excelling in portable devices such as mobile phones and smartwatches.

Technical Advantages:

1. Using high - purity ytterbium metal as the raw material, the absolute purity of the product can reach up to 4N. Key impurities are strictly controlled, with O ≤ 1000 ppm and C ≤ 100 ppm.

2. The product has a low defect rate in appearance, meeting the application requirements of the display field.

3. Customized production of non - standard sizes is supported.
