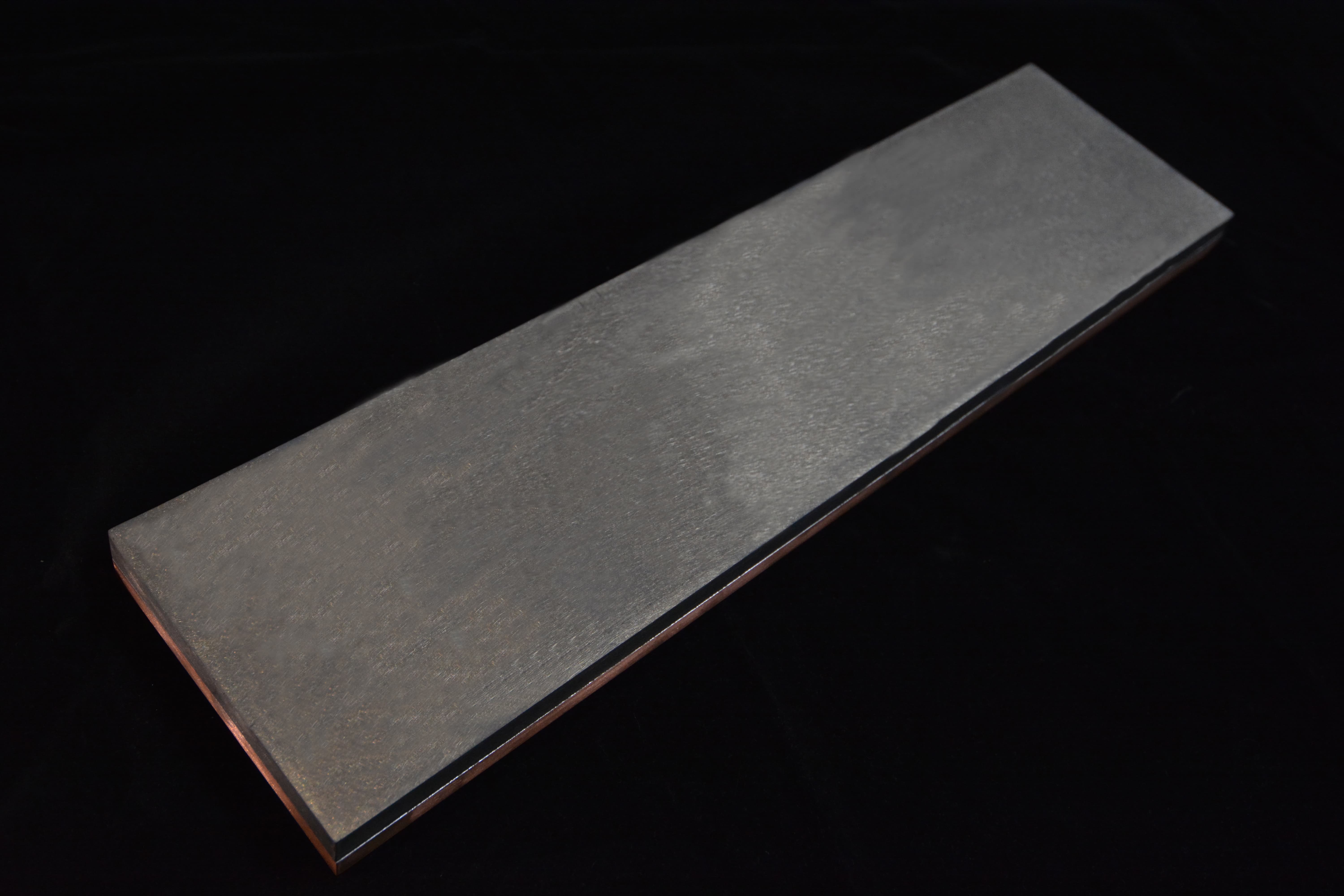

Ytterbium Target(Yb)
Customized production of non-standard sizes is supported.
Hunan Rare Earth offers high-quality Lanthanum Target at the most competitive price.
Description
Purity: 3N~4N(absolute purity)
Product Specification:vacuum packaging. Customization is also available upon request
Specifications
Standard Model:
|
Standard |
Hunan Rare Earth Standard |
|||
|
Grade |
Yb-4Na-T |
Yb-3Na5-T |
Yb-3Na-T |
|
|
Yb, no less than(%) |
99.99 |
99.95 |
99.9 |
|
|
Yb/RE, no less than(%) |
99.999 |
99.99 |
99.99 |
|
|
The impurity content shall not exceed (ppm) |
Al |
5 |
100 |
150 |
|
Si |
5 |
100 |
200 |
|
|
Fe |
10 |
100 |
150 |
|
|
Ca |
10 |
150 |
100 |
|
|
Cu |
1 |
5 |
50 |
|
|
Cr |
1 |
5 |
20 |
|
|
Ni |
1 |
10 |
50 |
|
|
Mn |
1 |
10 |
50 |
|
|
W |
5 |
50 |
100 |
|
|
Mg |
10 |
50 |
100 |
|
|
Cl |
80 |
100 |
200 |
|
|
C |
100 |
300 |
500 |
|
|
O |
1000 |
2000 |
4000 |
|
|
Typical Specifications |
Round Target |
φ6*6mm，φ6*10mm，φ10*10mm，φ53*65.5mm，φ60*26.5mm |
||
Product Applications:
Primarily used as a metal cathode coating material for OLED displays, it can replace traditional metal cathodes made of magnesium and silver. It reduces screen power consumption and extends the battery life of electronic products. It also significantly enhances the color saturation and resolution of the display, making the screen colors more vivid and the display effect clearer, particularly excelling in portable devices such as mobile phones and smartwatches.
Technical Advantages:
1. Using high - purity ytterbium metal as the raw material, the absolute purity of the product can reach up to 4N. Key impurities are strictly controlled, with O ≤ 1000 ppm and C ≤ 100 ppm.
2. The product has a low defect rate in appearance, meeting the application requirements of the display field.
3. Customized production of non - standard sizes is supported.
